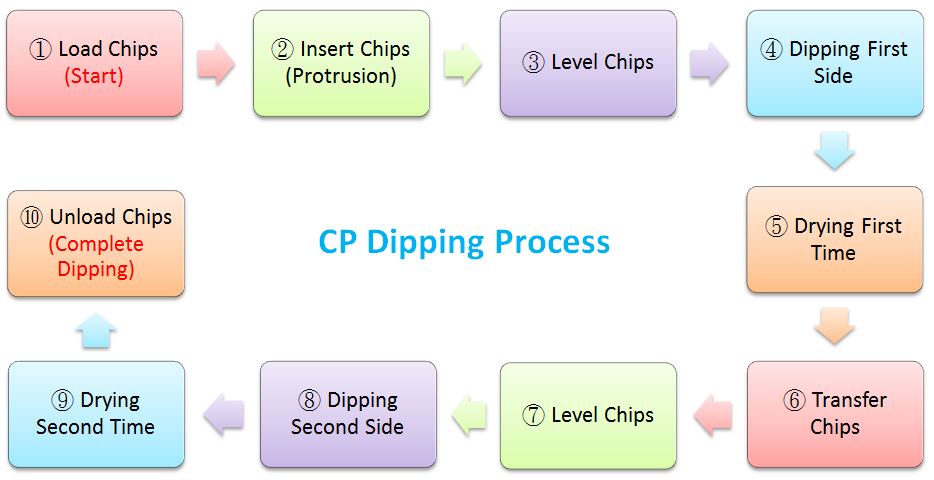

CP Dipping Process
Single Side Dipping Process from Top Inserting: For 0603(1608mm) above chips
| Dipping Process | Equipment | Consumables |
|---|---|---|
| ① Load Chips | Chip Loading Box, Loading Machine | Load Plate, Carrier Plate (CP) |
| ② Insert Chips (Protrusion) | Air Press from Top | Load Plate, Carrier Plate (CP), Top Press Conversion, Support Plate, Pins, Spacer for Insert, Unload Plate |
| ③Dipping First side | LGTM-4000C Dipping Machine (with Leveling Function) | |
| ④Drying first time | Dryer | CP Cassette |
| ⑤Transfer Chip (Protrusion) | Air Press from Top | Carrier Plate (CP), Transfer Plate, Top Press Conversion, Spacer for Transfer, Support Plate, Unload Plate, Pins |
| ⑥Dipping Second side | LGTM-4000C Dipping Machine (with Leveling Function) | |
| ⑦Drying Second time | Dryer | CP Cassette |
| ⑧Unload Chips | Air Press from Top | Top Press Conversion, Unload Plate |
