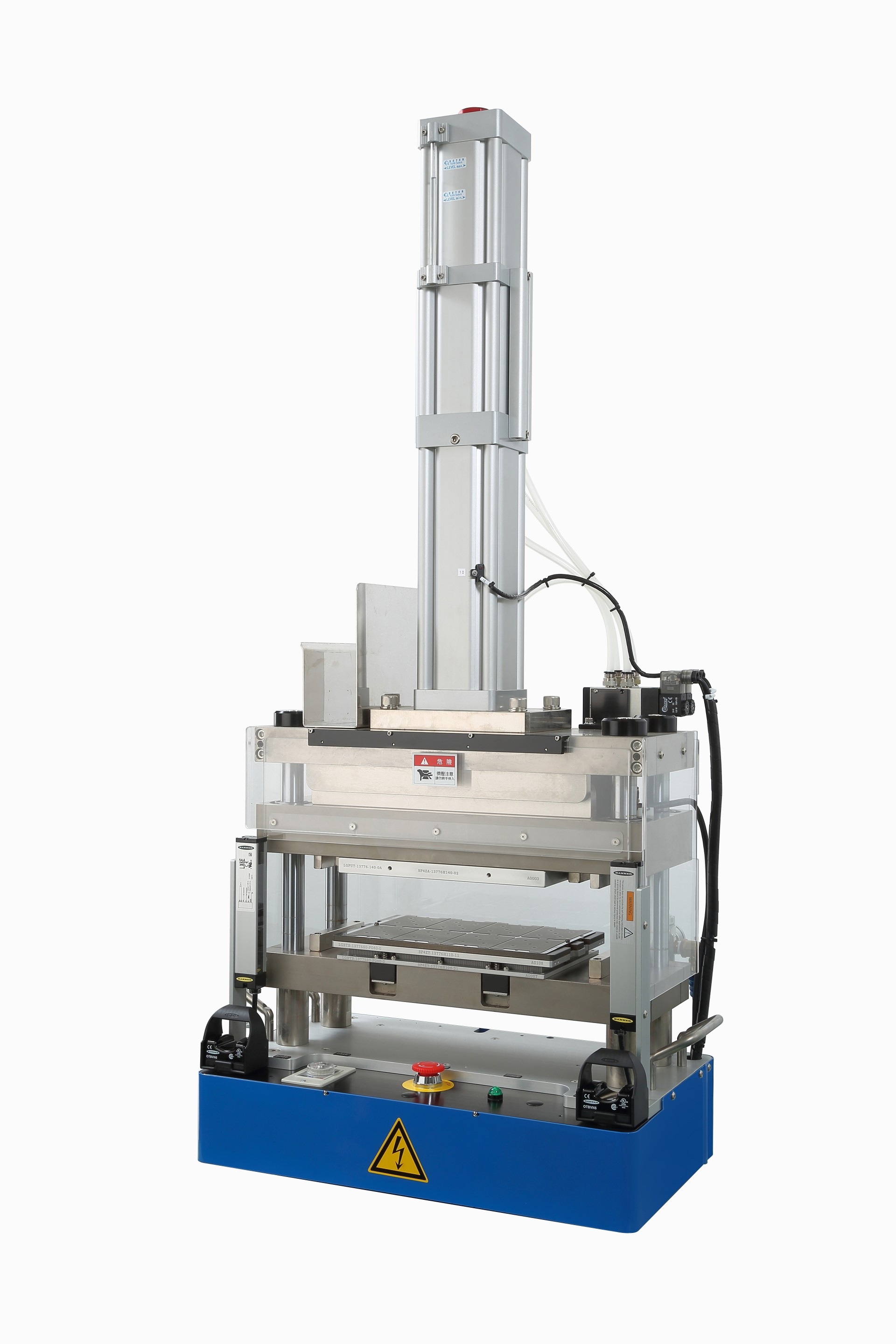

Air Press from Bottom

LGAT-013T
Air Press from Bottom
Product Description
Application： Chips inserting into TCP
Q'ty : Inquiry
  • After vibration chips, put the Load plate  on Bottom Press Conversion by labor.
  • Then put the TCP on Load Plate.
  • Start the bilateral sensor switch to let the punch-pin of lower Press Conversion upper and then put the chips into holes of TCP.
  • Dimension: 650 (L) * 450 (W) * 1350 (H) mm
  • Weight: 150 KG
  • Voltage: 3ψ220VA
  • Electric current: 1(A)
  • Power consumption: 0.22KW
  • Frequency: 50/60Hz
  • Air Consumption: 27 (l/min)
  • Press Conversion (inserting from bottom) * 1 set
  • Load Plate (inserting from bottom) (have to fit the chips dimension) * 1 pc
  • TCP * 1 pc
